DisC Phono Cartridge

In the last few years, there has been great interest in phono cartridges based on strain-gauge transducers in which the stylus is coupled directly to a transducing element made of silicon, similar to the base region of a transistor.

This type of transducer is pressure-sensitive so that the displacement of the stylus controls the resistance of a conducting channel. The movement of the stylus is thus translated directly into a signal voltage.

Rather similar to the old ceramic cartriges of the past, these cartridges are not electrodynamic generators and thus do not require movement of an armature to derive a signal. The transduced quantity is thereby not stylus velocity, as it is in a moving-coil or moving-magnet (or moving-iron) cartridge. Instead, the output voltage is a direct measure of the amplitude of the stylus movement within the groove.

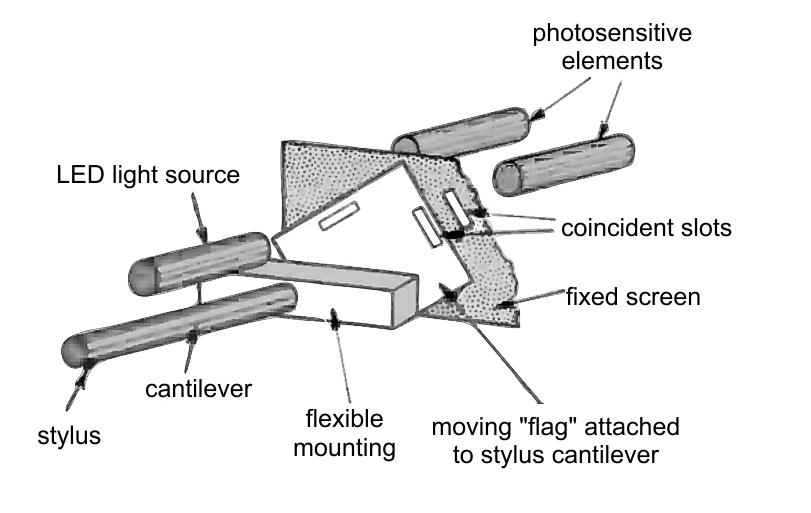

Another new cartridge type (although, in truth, as with the strain-gauge type, both modern variations on very old themes), is based on light-valves in which the movement of the stylus controls the amount of light falling on a photo-sensor. Once again, this type directly senses the displacement of the stylus as it moves in the groove1.

Away with RIAA!

Both these displacement-sensitive cartridge types, have been received to great acclaim by the audio press who attribute their particular quality to the minimal equalisation required by a phono cartridge of this type and for the concomitant simplification of the replay electronics.

Phædrus Audio DisC

Given the reputation of displacement-sensitive pickups as the primo inter pares in the world of high-end phonograph cartridges, we believed that we at Phædrus Audio ought to see if it was possible to develop a cartridge of this type.

It is..... and the result we have named DisC (for Displacement Cartridge).

The DisC is available in two versions: The DisC fitted with 10µm x 18µm bonded, elliptical stylus and the DisC-SH fitted with 6.5µm 68µm nude, square-shank, Shibata stylus.

A little history....

Displacement-sensitive cartridges aren't new. In fact, there was a time that the vast majorty of phono pickups were of this type. Older ceramic cartridges sensed groove displacement and dispensed with electrical equalisation entirely. Generations of small record players used the signal directly from the "crystal" or ceramic pickup to drive a simple amplifier formed from a single valve (tube). The circuit diagram of one such unit, the Dansette Bermuda is illustrated below.

Go to the link for the reasons why a displacement-sensitive cartridge does not require equalisation.

Circuit diagram of a record player by Dansette in which the ceramic cartridge directly drives the single valve amplifier (via the volume control). No equalisation is required.

The Phædrus Audio DisC brings forward this technology from the sixties to the present day with a phono cartridge which doesn't need RIAA equalisation.

DisC technology

The Phædrus Audio DisC is neither a strain-gauge, nor an occluding optical-path cartridge. (Nor a ceramic type!) Instead, a moving-magnet cartridge element is operated as an element in a special very low-impedance circuit configuration such that the short-circuit current generated at the output of the cartridge is an accurate analogue of the groove displacement.

This arrangement is especially advantageous because it avoids the mechanical impedance limitations which beset the strain-gauge type - and the ceramic cartridge of yesterday2.

The DisC cartridge thereby combines the advantages of the best of electro-dynamic cartridges with the advantages of the displacement-sensitive type. This includes:

  • Low-impedance operation (and therefore low-noise) - like a moving-coil;
  • Superior tracking; and
  • Low-equalisation requirement of the strain-gauge or optical type.


Recovery of the current-mode signal from the DisC cartridge, suitably equalised, for sending to a standard preamplifier or integrated amplifier is performed by the ADAMANTINE base-station (the interior of which is illustrated above).

No modifications are required to turntable or cabling to support a DisC cartridge. The cartridge body is tapped, so that it is fixed to the headshell simply with 2 x 2.5mm austenitic stainless-steel bolts (which are supplied).

Prices are here.

Specification Phædrus Audio DisC

  • Load: ADAMANTINE base station only
  • Stylus: 0.0003" x 0.0007" elliptical diamond
  • Tracking force range: 1.5 to 2.5g (15 to 25mN)
  • Tracking force recommended: 2g (20mN)
  • Mount: ½ inch; body tapped M2.5
  • Vertical tracking angle: 20
  • Weight: 8g

Note that the PHLUX active cartridge is the subject of UK Patent application GB1705370.3

Why does a displacement-sensitive cartridge not require equalisation?

The truth is that they do.... a bit! But the equalisation is not the well known RIAA type equalisation and it is more than an order of magnitude less intense.

The cutter head, which engraves the record groove is constructed very like a loudspeaker. It is mechanically coupled to a coil through which the signal currents flow whilst sitting within field of a powerful magnet. Just as with a loudspeaker, it is the bass frequencies which cause the cutter to move the most: the high frequencies cause it to move only very slightly. (If you've ever looked at a loudspeaker cone as it reproduces music you'll recognise this.)

Thus, if the record cutter-head is fed a signal with has a constant amplitude with respect to frequency (a signal with a flat frequency response), the cutter will respond to this signal so that, as the frequency increases, and the slope of the signals steepen, the amplitude of the groove inscribed on the disc will fall. We say that the grooove has a constant-velocity characteristic.

Now, if this record is played with a cartridge which responds to the velocity of the stylus as it traces the groove (and all modern, electrodynamic cartridges do), it will reverse the effect of the cutter and the output signal will once again has a flat characteristic with respect to frequency. Put simply, the falling response of the cutter is cancelled out by the rising response of the cartridge.

This mirror-image nature of cartridge and cutter is why we can speak of complementary recording and playback equalisers. But in doing so, it's easy to forget that the physical "wiggles" inscribed in the disc do not match the frequency characteristic of either the pre-equalised signal, or the post-equalised signal. They exist in a little-appreciated nether-world.

The frequency response of the groove inscribed on the surface of an LP record: mostly flat with a modest shelf at high-frequencies.

The signal derived from the displacement of the groove when recorded according to the RIAA standard, has a frequency characteristic which has two broad regions of flat-response at high and low frequencies, separated by a step, as illustrated above. The first region is due to the turnover filter in the recording equaliser. This cuts bass frequencies and thereby forces a rising response through the bass-middle frequencies. This complements the falling response of the cutter-head. The second region is due to pre-emphasis, where once again, the rising response complements the falling-response of the cutter. The shelf is caused by the flat part of the recording characteristic (in RIAA, between 500Hz and 2121Hz) where there is no compensation for the falling response of the cutter-head. In fact, the precise value of the offset of this shelf is derived from the ratio of the two upper time-constants of the RIAA standard thus,

75μs318μs = 0.23585 = -12.54dB

Now, if a cartridge is used which responds directly to the groove amplitude, nearly all that is required to correct a record recorded with the RIAA characteristic is an equaliser which restores the treble section to that of the bass: a signal manipulation which is just 4% of hundred-fold ratio enshrined in the RIAA characteristic. An appreciation of the modest requirement for equalisation may be appreciated by the fact that, in older ceramic type cartridges, this gentle equalisation was achieved with a gentle, mechanical resonance at high-frequencies.
